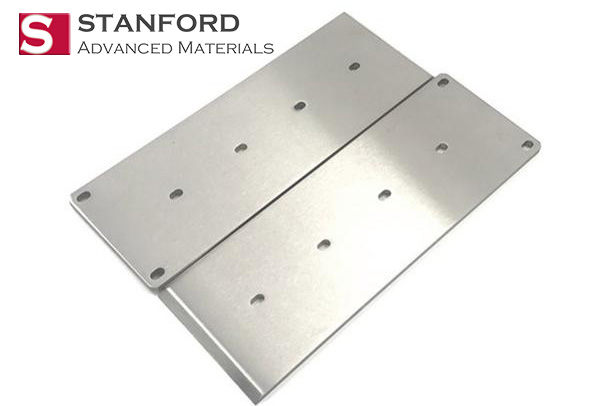

ST6556 Lutetium Planar Target

Lutetium Planar Target Description

SAM’s lutetium planar targets are produced from lutetium metal with purity ranging from 99.9% to 99.99% (3N-4N). These targets come in diameters (50-200 mm) and thicknesses (3-10 mm). Custom bonding options (e.g., Cu backing plates) and fine-grained structures (<50 µm) ensure consistent sputtering and thermal stability. Each target is vacuum-sealed in argon-filled containers to prevent oxidation and undergoes XRD crystallography and ICP-MS impurity analysis, meeting ASTM F3091 standards. Technical support is provided, including sputtering parameter advice (e.g., DC power ranges), and rapid delivery (3-4 weeks).

Lutetium Planar Target Specifications

Properties

• Purity: 99.9%
• Theoretical Density: 9.8404 g/cm³
• Melting Point: 1663 °C
• Boiling Point: 3395 °C
• Product Shape: Rectangular, or customized upon request
• Product Size: Customized
  The product information above is based on theoretical data. For specific requirements, please contact us.

Lutetium Planar Target Applications

1. Medical Imaging: Lu-177 isotope films for targeted cancer radiotherapy.
2. Catalysis: Lu-doped coatings for petroleum refining and chemical synthesis.
3. Scintillators: Lu-based films in PET scanners and radiation detectors.
4. Electronics: High-k dielectric layers for semiconductor devices.

Lutetium Planar Target Packaging

The products are packaged in cartons customized according to the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We strictly follow packaging requirements and use appropriate cushioning materials for optimal protection during transport.

Packaging Options: Carton, Wooden Box, or Customized.

Manufacturing Process

• Manufacturing Process Flow

• Testing Method
  • Chemical Composition Analysis: Conducted using GDMS or XRF to confirm purity compliance.
  • Mechanical Properties Testing: Includes tests for tensile strength, yield strength, and elongation to assess material performance.
  • Dimensional Inspection: Measures thickness, width, and length for tolerance adherence.
  • Surface Quality Inspection: Inspects for defects like scratches or cracks via visual and ultrasonic methods.
  • Hardness Testing: Assesses material hardness for mechanical reliability.

Lutetium Planar Target FAQs

Q1: What purity grades are available for lutetium targets?
A1: SAM provides a 99.9% (3N) purity grade, with trace impurity data included in Certificates of Analysis (CoA).

Q2: Can I request custom target dimensions or bonding configurations?
A2: Yes. Custom diameters (50-200 mm), thicknesses (3-10 mm), and bonded backings (e.g., Cu, Mo) are available. Submit specifications for fast prototyping.

Q3: How is oxidation prevented during storage and shipping?
A3: Targets are vacuum-sealed in argon-filled containers with desiccant packs. After delivery, storage in dry inert gas (Ar/N₂) is recommended.

Performance Comparison Table with Competitive Products

Lutetium Rotary Target vs. Lutetium Planar Target

Related Information

1. Raw Materials – Lutetium
   Atomic Number: 71 | Melting Point: 1663°C | Density: 9.84 g/cm³
   Key Uses: Cancer therapy, catalysis, electronics.
   Fun Fact: Lutetium is the heaviest and hardest rare-earth metal.
